Event Lighting Design & Production

WYSIWYG system Specs:


Logic Case SC-43400 4U Standard Chassis 6x 3.5" HDD + 2x 5.25" Bays. Short Depth – 400mm.
450W Corsair VS450, Fully Wired, 80 PLUS White, SLI/CrossFire, Single Rail, 34A, 120mm Fan, ATX PSU
Asus PRIME Z270-P, Intel Z270, 1151, ATX, DDR4, CrossFire, DVI, HDMI
Intel Core I7-7700 CPU, 1151, 3.6 GHz, Quad Core, 65W, 14nm, 6MB Cache, HD GFX, 8 GT/s, Kaby Lake
16GB (2x8GB) Corsair DDR4 Vengeance LPX Black, PC4-17000 (2133), Non-ECC Unbuffered, CAS 13-15-15-28, XMP 2.0, 1.2V
500GB Samsung 850 EVO, M.2 (22x80) SSD, SATA3 6Gb/s, Samsung MGX, 3D V-NAND, Read 540MB/s, Write 500MB/s, 97k IOPS
Zotac GeForce GTX 1070 Mini, 8GB GDDR5 VR Ready Graphics Card, 1920 Core, 1518MHz GPU, 1708MHz Boost
Cooler Master Hyper 212 EVO, 4 Heat Pipes Direct Contact, 120mm Quiet Fan, for Intel/AMD

OEM MS Win Pro 10 64Bit

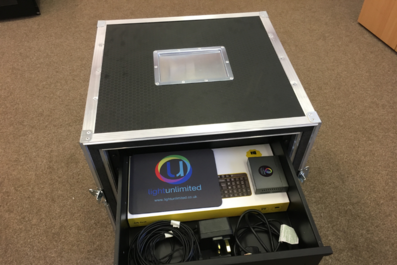

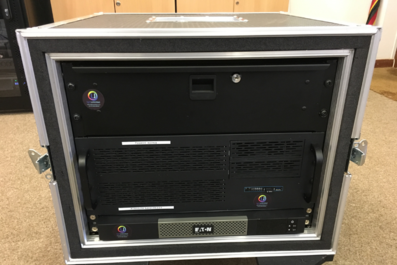

Flight-cased in 8 U Shock Proof Flightcase with 3 U drawer for cables and accessories, wireless mouse, wireless keyboard,

Netgear Gigabit 5 Port Switch (un-managed), 3 x CAT5 Cables and 2 x Display Port - HDMI adaptors. 6 Way 13A Rackmount power distribution strip for monitor power (protected by UPS).

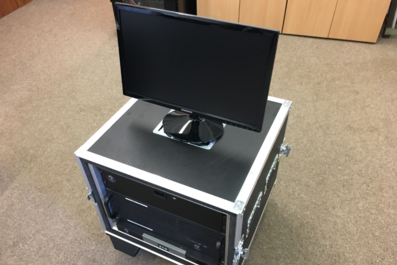

2 x Samsung S22D300H 22" Widescreen LED Monitor - Included (Flight cased individually).


Eaton UPS



We can also provide WYSIWYG models for pre - programming and visualisation and support on site for LDs and programmers.


to date the WYSIWYG system has been used for pre - programming by a range of LDs for festivals, tours, corporate events, fashion shows and live events
